Istio Secure Gateway 실습¶
kind 클러스터에서 Istio 공식 Secure Ingress 예제를 재현하기 위한 실습 가이드. SIMPLE/MUTUAL TLS 모드를 단계별로 정리한다.
로컬 kind 클러스터에서 Istio 공식 Secure Ingress 예제를 그대로 재현하기 위한 가이드이다. 복사‑붙여넣기만으로 동작하도록 모든 명령을 하나의 블록으로 묶었다.
0. 사전 준비 (요약)¶
| 순서 | 작업 | 명령 |
|---|---|---|
| ① | kind 클러스터 생성 | Istio Gateway 포트 맵핑 (NodePort 30000, 30005) |
| ② | Istio 1.17 설치 | istioctl install --set profile=default -y |
| ④ | 연습 네임스페이스 | kubectl create ns istioinaction && kubectl label ns istioinaction istio-injection=enabled |
CRD 확인 :
kubectl get crd | grep gateways.networking.istio.io— Gateway·VirtualService CRD가 보여야 다음 단계로 넘어간다.
1. 환경 변수 설정¶
export INGRESS_HOST=127.0.0.1 # kind → localhost
export INGRESS_PORT=30000 # HTTP
export SECURE_INGRESS_PORT=30005 # HTTPS
2. 샘플 애플리케이션 배포¶
export ISTIO_TAG=release-1.25
# httpbin
kubectl apply -n istioinaction -f \
https://raw.githubusercontent.com/istio/istio/${ISTIO_TAG}/samples/httpbin/httpbin.yaml
# sleep (curl 테스트용)
kubectl apply -n istioinaction -f \
https://raw.githubusercontent.com/istio/istio/${ISTIO_TAG}/samples/sleep/sleep.yaml
3. 인증서 생성¶
mkdir certs && cd certs
# 3‑1) Root CA
openssl req -x509 -nodes -days 365 -newkey rsa:2048 \
-subj "/O=example Inc./CN=example.com" \
-keyout ca.key -out ca.crt
# 3‑2) httpbin 서버 cert
openssl req -newkey rsa:2048 -nodes \
-keyout httpbin.key -out httpbin.csr \
-subj "/CN=httpbin.example.com"
openssl x509 -req -days 365 -in httpbin.csr -CA ca.crt -CAkey ca.key \
-set_serial 0 -out httpbin.crt
# 3‑3) (선택) 클라이언트 cert
openssl req -newkey rsa:2048 -nodes \
-keyout client.key -out client.csr \
-subj "/CN=client.example.com"
openssl x509 -req -days 365 -in client.csr -CA ca.crt -CAkey ca.key \
-set_serial 1 -out client.crt
cd ..
4. HTTPS Ingress — SIMPLE 모드¶
4‑1. Secret¶
kubectl create -n istio-system secret tls httpbin-cred \
--key certs/httpbin.key \
--cert certs/httpbin.crt
4‑2. Gateway & VirtualService (한 번에 적용)¶
kubectl apply -n istioinaction -f - <<'EOF'
apiVersion: networking.istio.io/v1beta1
kind: Gateway
metadata:
name: httpbin-gateway
spec:
selector:
istio: ingressgateway
servers:
- port:
number: 443
name: https
protocol: HTTPS
hosts:
- httpbin.example.com
tls:
mode: SIMPLE
credentialName: httpbin-cred
---
apiVersion: networking.istio.io/v1beta1
kind: VirtualService
metadata:
name: httpbin
spec:
hosts:
- httpbin.example.com
gateways:
- httpbin-gateway
http:
- match:
- uri:
prefix: /
route:
- destination:
host: httpbin
port:
number: 8000
EOF

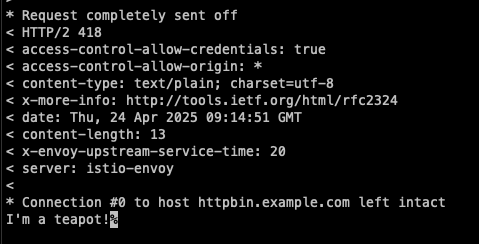

4‑3. 검증¶
curl -v --resolve "httpbin.example.com:${SECURE_INGRESS_PORT}:${INGRESS_HOST}" \
--cacert certs/ca.crt \
https://httpbin.example.com:${SECURE_INGRESS_PORT}/status/418
5. Mutual TLS Ingress — MUTUAL 모드¶
5‑1. Secret (CA 포함)¶
kubectl delete -n istio-system secret httpbin-cred
kubectl create -n istio-system secret generic httpbin-cred \
--from-file=key=certs/httpbin.key \
--from-file=cert=certs/httpbin.crt \
--from-file=cacert=certs/ca.crt
5‑2. Gateway 모드 변경¶
kubectl patch gateway -n istioinaction httpbin-gateway --type json \
-p='[{"op":"replace","path":"/spec/servers/0/tls/mode","value":"MUTUAL"}]'

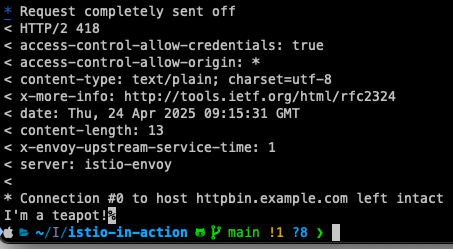

5‑3. 검증 (클라이언트 cert 필요)¶
curl -v --resolve "httpbin.example.com:${SECURE_INGRESS_PORT}:${INGRESS_HOST}" \
--cacert certs/ca.crt \
--cert certs/client.crt \
--key certs/client.key \
https://httpbin.example.com:${SECURE_INGRESS_PORT}/status/418
